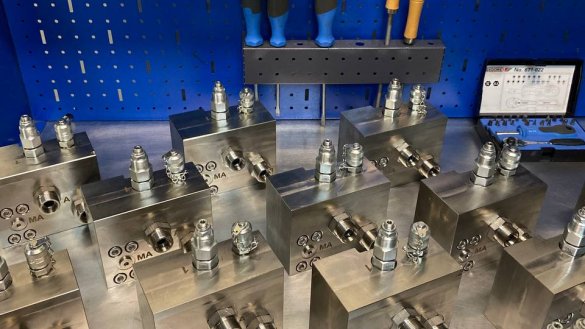

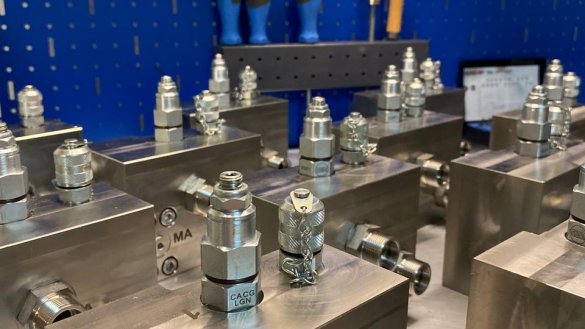

Pressure relief manifold DHMASW

Technical data:
1. Working pressure - 190 bar
2. Max flow rate - 50 l/min
3. Seal - NBR
4. Working fluid temperature:
- HLP: -20 ... +80 °С
- HFC: -20 ... +50 °С
5. Ambient temperature: -20 ... +70 °С
6. Warehouse temperature: +5 ... +40 °С
7. Viscosity range: 15 ... 100 mm2/sec (sSt)
8. Max viscosity: up to 500 mm2/sec (sSt)
9. Min permissible oil cleanness according to ISO 4406 - 20/18/15
10. Manifold material - stainless steel
